Made a dalek in rhino!.. |
| Drew a profile with the line tool that is similar to that which I used in inventor |
 |
| Created four other profiles with the copy tool and scaled them so each one was a little bit smaller than the last |
 |
| Extruded all five profiles and capped their planar holes |
 |
| Stacked the pieces together and used the boolean union tool to join them |
 |
| Created lots of little spheres that will be attached to each layer and attached a sphere to the top using the boolean union tool |
 |
| Made a cylinder and placed it in the centre |
 |
| The final model in Rhino |
Exported it as an stl. I decided to 3D print this model.

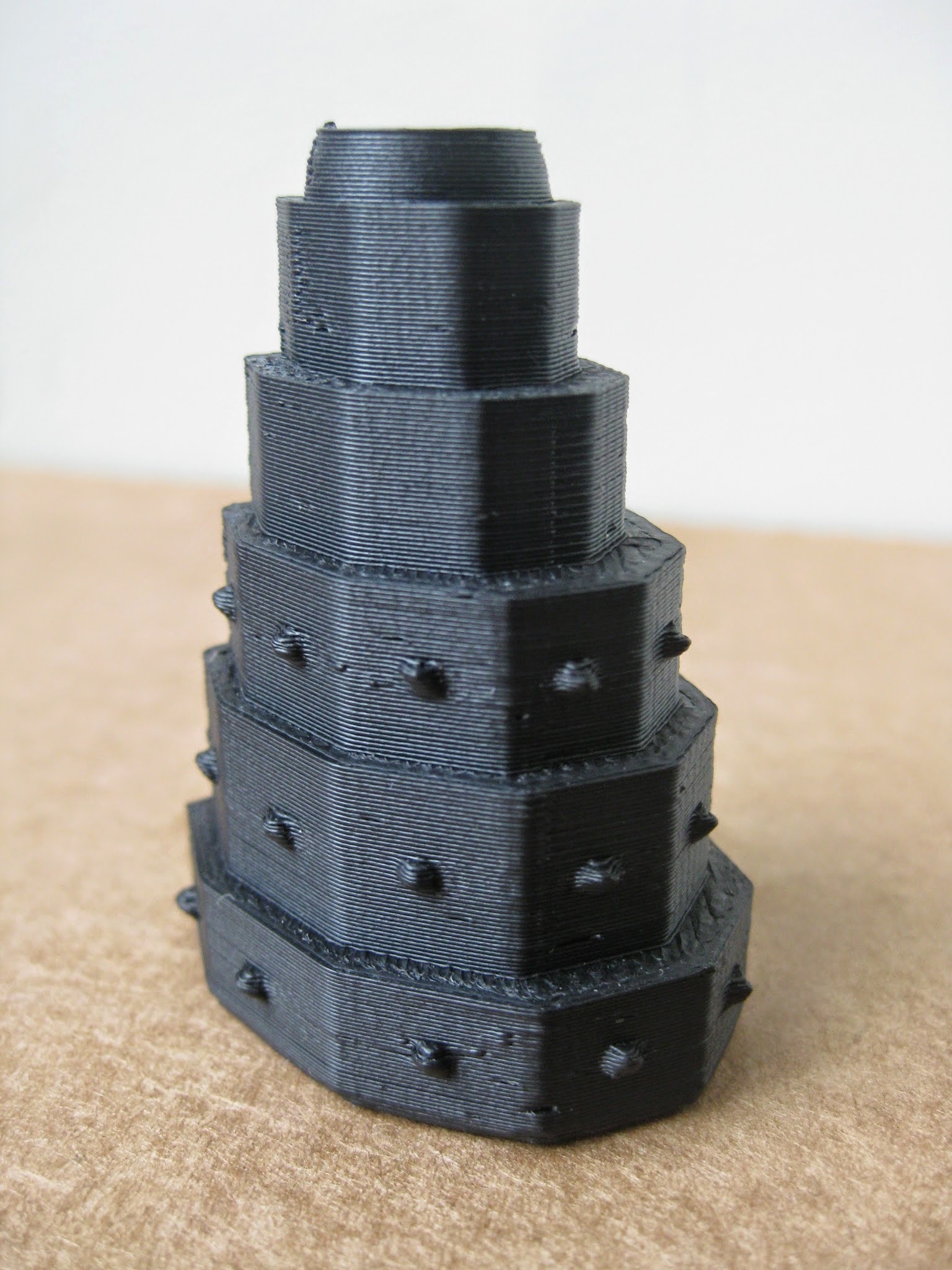

The Final product...
The Final product...
